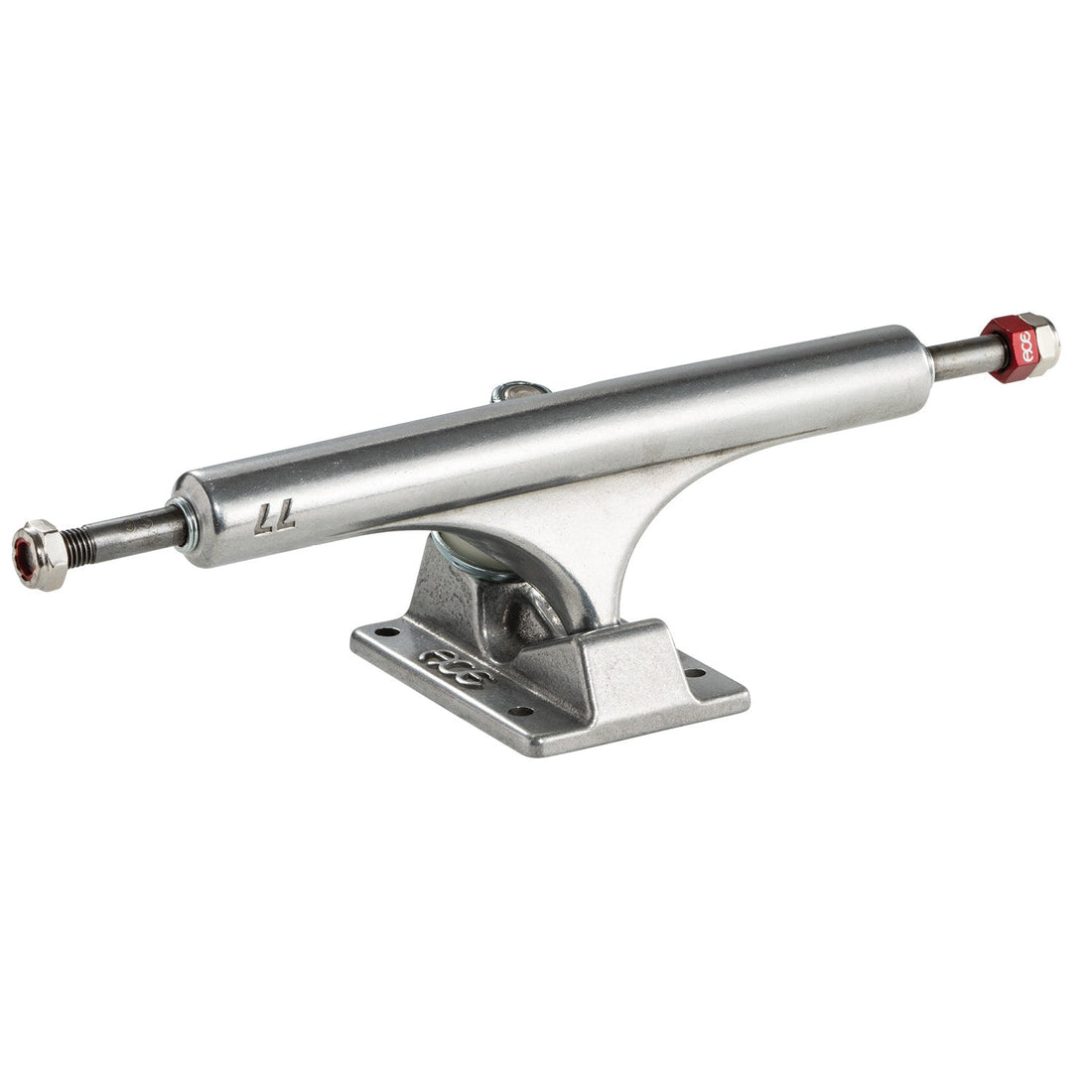

Ace AF1 Hollow 77 Polished Trucks 9.5" Axle

Ace AF1 Hollow 77 Polished Trucks 9.5" Axle

Regular price $76.00 USD
Regular price Sale price $76.00 USD
Sale Sold out
Shipping calculated at checkout.

Ace AF1 Hollow 77 Polished Trucks 9.5" Axle

The all - new ACE AF1 HOLLOWS features hollow axle & kingpin, making for the lightest AF1 to date. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market.
The Ace AF1, tomorrow’s technology today!

8.6% Lighter Than Standard AF1

77: 9.5" Axle with 175mm hanger fits decks 9.25" & above.

  • All trucks sold in sets of two (2)
  • Axle Width: 9.5" (241.3mm)
  • Hanger Width: 6.9" (175mm)
  • 2.1" (53mm) tall
  • Weight: 13.33 oz. (378 grams)
  • Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
  • True T6 heat-treated baseplates & hangers
  • SAE 4140 steel alloy axles, oversized to eliminate bearing wobble
  • Patent pending rethreading axle nuts - no more damaged axle ends!
  • Durable Hand-poured 96a urethane pivot bushings for better response
  • Refined suspension for a cleaner turn
  • Top Bushing: 12mm tall | 91a hardness
  • Bottom Bushing: Bottom 14mm tall | 86a hardness
  • Machine-faced hanger ends for precise bearing contact
