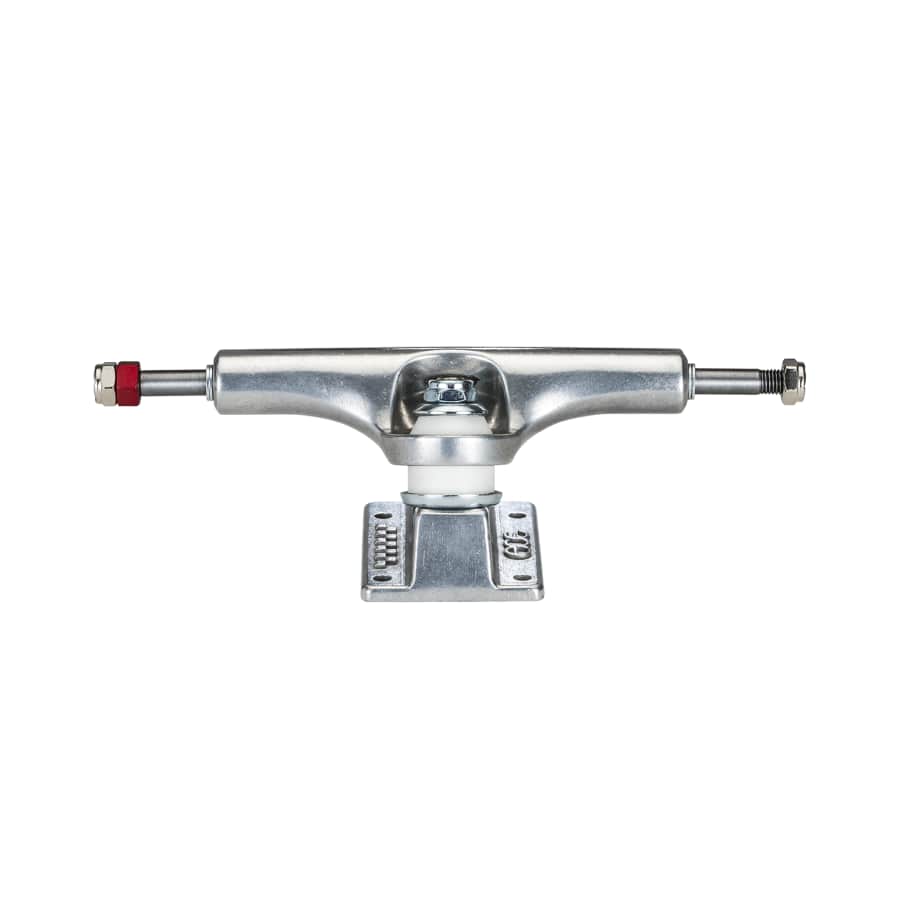

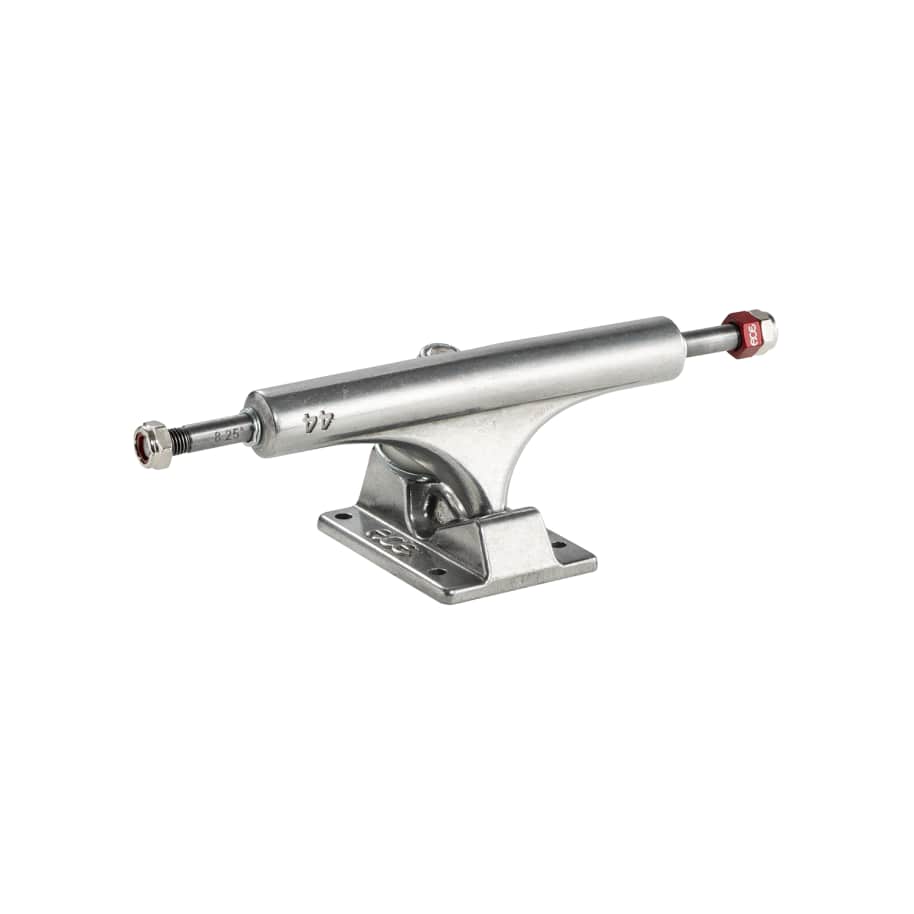

Ace AF1 44 Polished Trucks 8.25" Axle

Ace AF1 44 Polished Trucks 8.25" Axle

Regular price $66.00 USD
Regular price Sale price $66.00 USD
Sale Sold out
Shipping calculated at checkout.

Ace AF1 44 Polished Trucks 8.25" Axle

The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.

The Ace AF1, tomorrow’s technology today!

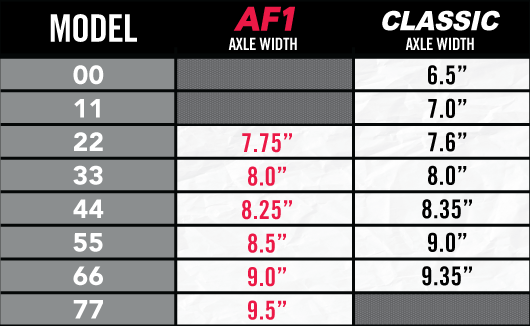

44: 8.25" Axle with 143mm hanger fits decks 8.125" - 8.3" wide.

  • All trucks sold in sets of two (2)
  • Axle Width: 8.25" (209mm)
  • Hanger Width: 5.6" (143mm)
  • 2.1" (53mm) tall
  • Weight: 13.9 oz
  • Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
  • True T6 heat-treated baseplates and hangers
  • SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
  • Patent pending rethreading axle nuts - no more damaged axle ends!
  • Durable Hand-poured 96a urethane pivot bushings for better response.
  • Refined suspension for a cleaner turn.
  • Top Bushing: 12mm tall | 91a hardness
  • Bottom Bushing: 14mm tall | 86a hardness
  • Machine-faced hanger ends for precise bearing contact
